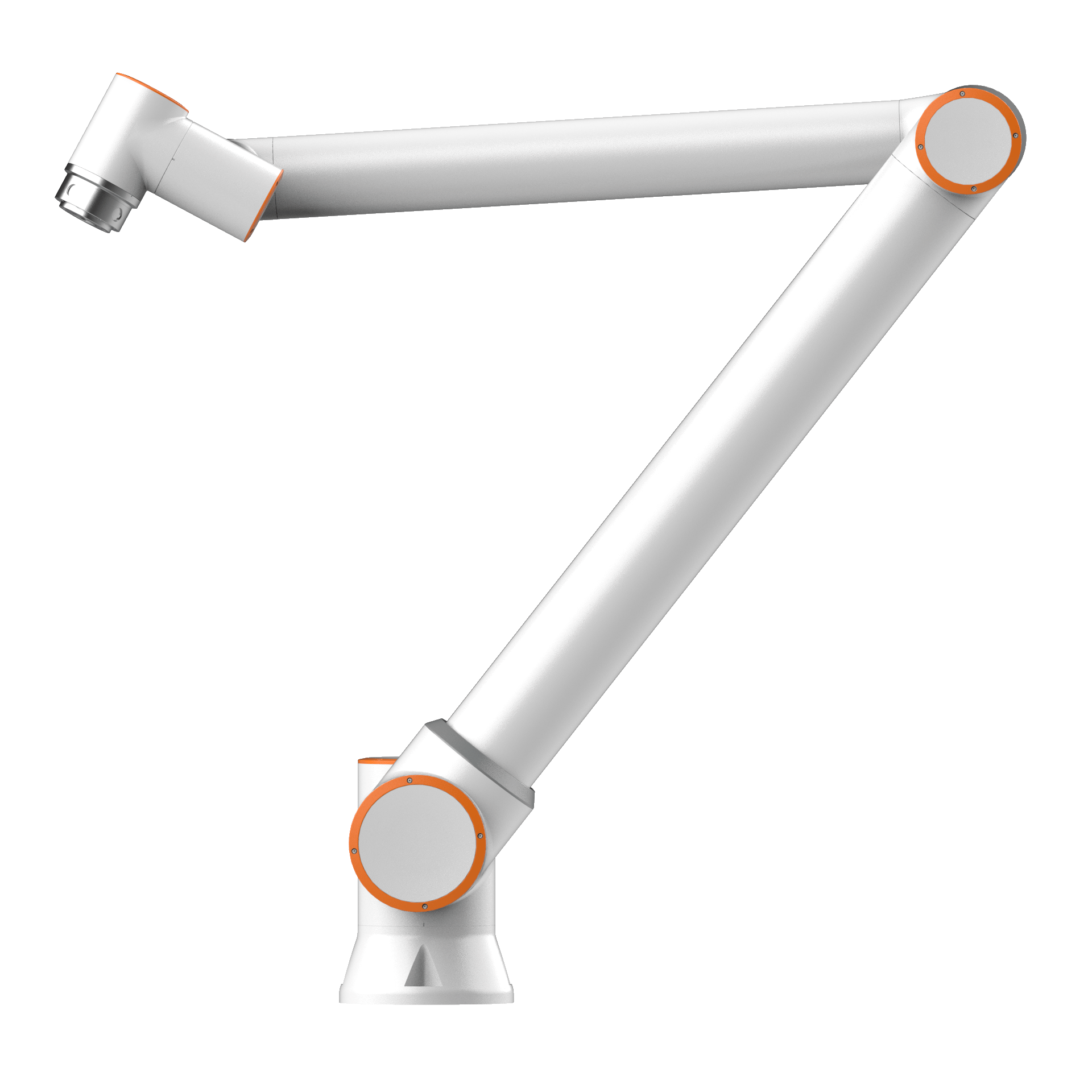

DEVONICS FAIRINO FR5 (WML)
$13,499.00Price
The FAIRINO FR5-WML is a 5kg collaborative robotic arm with a long 922mm reach, high ±0.02mm repeatability, and compact 149mm footprint. It is ideal for machine tending, pick-and-place, packaging, inspection, light assembly, and automation tasks that require a stronger payload with extended reach.
FAIRINO FR5-WML
| Specification | FAIRINO FR5-WML |
|---|---|
| Payload | 5kg |
| Reach | 1900mm |
| Degrees of Freedom | 6 rotating joints |
| Pose Repeatability | ±0.02mm |
| Typical TCP Speed | 1m/s |
| IP Classification | IP54, IP65 Optional |
| Noise | <65dB |
| Mounting Orientation | Any orientation |
| I/O Ports | Digital Input 2, Digital Output 2, Analog Input 1, Analog Output 1 |
| Tool I/O Power Supply | 24V / 1.5A |
| Footprint | 149mm |
| Weight | ≈22kg |
| Operating Temperature | 0–45°C |
| Operating Humidity | 90% RH non-condensing |
| Materials | Aluminium, Steel |
| Payload Setting | FR5-WML payload setting: 5kg |
| Z-axis | 30mm |
| Rated Power | 260W |
| Maximum Power | 310W |
