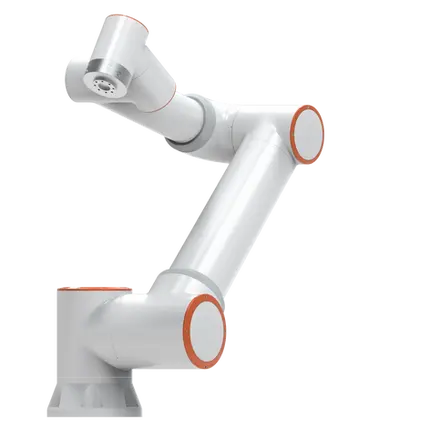

FAIRINO FR30

UR30 – Universal Robots

Price:

$18,199

Price:

$61,415

Manufacturer Warranty:

18 months

Manufacturer Warranty:

15 months

Expected Lifetime:

50,000 hours

Expected Lifetime:

35,000 hours

After-Sales Support:

5 years, U.S.-based

After-Sales Support:

5 years, U.S.-based

Payload:

30 kg standard; up to 35 kg under specified conditions

Payload:

30 kg standard; up to 35 kg under specified conditions

Reach:

1,403 mm

Reach:

1,300 mm

Degrees of Freedom:

6 axes

Degrees of Freedom:

6 axes

Pose Repeatability (ISO 9283):

±0.1 mm

Pose Repeatability (ISO 9283):

±0.1 mm

TCP Speed:

2 m/s typical

TCP Speed:

Up to 4 m/s

IP Classification:

IP54; optional IP65

IP Classification:

IP65

Noise:

<70 dB

Noise:

<65 dB

Tool I/O Ports:

2 digital inputs, 2 digital outputs, 1 analog input, 1 analog output and 2 high-speed pulse inputs

Tool I/O Ports:

2 digital inputs, 2 digital outputs, 2 analog inputs and RS485 communication

Tool I/O Power Supply:

24 V DC, 1.5 A

Tool I/O Power Supply:

12/24 V DC; up to 2 A

Footprint:

240 mm

Footprint:

245 mm

Robot Weight:

Approximately 85 kg

Robot Weight:

63.5 kg

Operating Temperature:

0–45°C

Operating Temperature:

0–50°C, with possible reduced performance above 35°C

Operating Humidity:

Up to 90% RH, non-condensing

Operating Humidity:

Up to 90% RH, non-condensing

Materials:

Aluminum and steel

Materials:

Aluminum, steel and PC/ASA plastic
