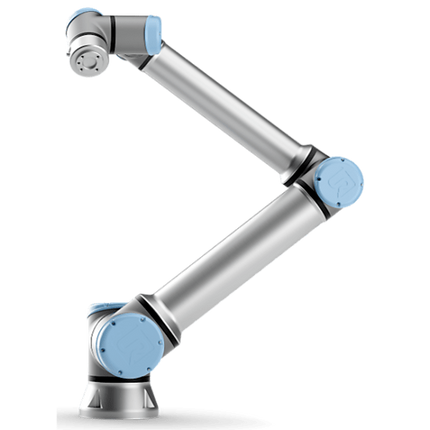

UR10e - UNIVERSAL ROBOTS COBOT

Payload

10KG

Reach

1300mm

Repeatability

±0.05mm

COBOTS - The UR10e from Universal Robots is a versatile e-series cobot designed for medium-sized automation tasks, featuring a robust 12.5 kg payload and an extensive 1300 mm reach. This powerful robotic arm is ideal for automating routine processes such as machine tending, palletizing, pick-and-place, dispensing, and welding. The UR10e cobot offers the perfect combination of payload and reach to enhance productivity, enabling safe and efficient collaboration between humans and machines. With its flexible capabilities, this robotic arm streamlines operations in diverse applications, making it a top choice for businesses aiming to optimize workflows with advanced cobot technology.

Price:

$49,596.00

MTTR :
(Mean Time To Repair)

Contact for details

General Specifications
Part Number	PR-UR-010-0000

Weight	47.3 kg
Dimensions (L x W x H)	915 x 760 x 485 mm
Associated Fasteners	4 x HW-FN-003-1025, 4 x HW-FN-003-1030

Spec Attribute	Spec Value
Performance
Reach	1300 mm
Repeatability	0.05 mm
Max Payload	12.5 kg
Robot Weight	33.5 kg
Degrees of Freedom	6
Max Average Power Consumption	615 W
Typical Average Power Consumption	350 W

Spec Attribute	Spec Value
Movement
J1 Movement Range	360 degrees
J2 Movement Range	360 degrees
J3 Movement Range	360 degrees
J4 Movement Range	360 degrees
J5 Movement Range	360 degrees
J6 Movement Range	360 degrees

Spec Attribute	Spec Value
Features
Robot Certified Standards	EN ISO 13849-1, PLd Category 3, and EN ISO 10218-1
Robot IP Rating	54
Controller Certificatied Standards	ISO 14644-1 Class Cleanroom 6
Controller IP Rating	44
Warranty	18 Months
Available Add On Service	Field Evaluation Service for Canada (CSA SPE 1000) Add: PR-UR-800-0001

Spec Attribute	Spec Value
Controller
Controller Power Source	100-240VAC, 47-440Hz
Controller Weight	12 kg
Controller Dimensions	460 mm x 449 mm x 254 mm
Controller Digital ports	7 in, 7 out
Controller Analog ports	2 in, 2 out
Robot to controller cable length	6 m
