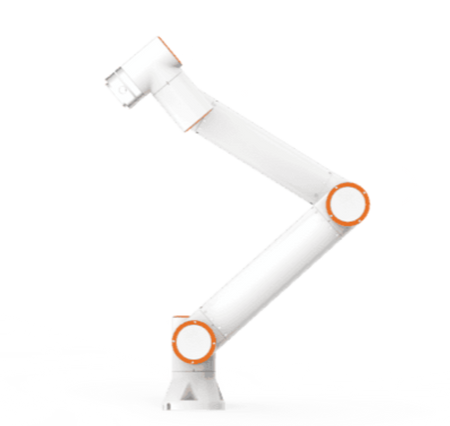

FAIRINO FR3 (WML) - COBOT
_edited.png){kind=small}
Payload
3kg
Reach
622mm
Repeatability
±0.02mm
The FRFR3(WML) is an ultra-lightweight collaborative robot designed for high-precision welding and flexible manufacturing. Its compact design allows easy single-person handling while featuring collision detection for safe human-robot collaboration. ±360° sixth-axis rotation enables complex curved surface welding.
Price:
$7,499.00
MTTR :
(Mean Time To Repair)
30,000 HR.
Portability - FR3WMS weighs only 10.5kg, with a 30% weight reduction
Flexibility - 6th axis ±360° working range, adapting to complex welding tasks.
Protection - Resistant to dust, oil, and water jets, making it ideal for harsh welding applications.
ROBOT ARM
specification 1 | Payload | 3kg | |
Reach | 622mm | ||
Degrees of freedom | 6 rotating joints | ||
HMI | 10.1 inch teach pendant or mobile terminal Web APP | ||
Pose repeatability per ISO 9283 | ±0.02mm | ||
Axis movement | Working range | Maximum speed | |
Base | ±175° | ±150°/s | |
Shoulder | +85°/﹣265° | ±150°/s | |
Elbow | ±150° | ±150° | |
Wrist1 | +85°/﹣265° | ±180°/s | |
Wrist2 | ±175° | ±180°/s | |
Wrist3 | ±360° | ±180°/s | |
Typical TCP speed | 1m/s | ||
Features | IP classification | IP54 (IP65 Optional) | |
Noise | ＜65db | ||
Robot mounting | Any orientation | ||
I/O Ports | DI 2 DO 2 | ||
AI 1 AO 1 | |||
Tool I/O power supply | 24V/1.5A | ||
Physical | Footprint | 128mm | |
Weight | ≈11.25kg | ||
Operating temperature | 0—45℃ | ||
Operating humidity | 90%RH (non-condensing) | ||
Materials | Aluminium、Steel |
TEACH PENDANT
Features | IP classification | IP54 |
Operating humidity | 90%RH (non-condensing) | |
Display resolution | 1280*800 pixels | |
Physical | L*W*H | 268*210*88mm |
Weight | 1.6kg | |
Materials | ABS、PP | |
Cable length | 5m |
CONTROL BOX
DC MINI Controller 2KW | AC MINI Controller 2KW | ||
Features | IP classification | IP54 | IP54 |
Operating temperature | 0-45℃ | 0-45℃ | |
Operating humidity | 90%RH(non-condensing) | 90%RH(non-condensing) | |
I/O Ports | DI 16 DO 16 | DI 16 DO 16 | |
AI 2 AO 2 | AI 2 AO 2 | ||
High speed pulse input 2 | High speed pulse input 2 | ||
I/O power supply | 24V/1.5A | 24V/1.5A | |
Communication | I/O、TCP/IP、Modbus_TCP/RTU | I/O、TCP/IP、Modbus_TCP/RTU | |
Optional communication | CC-Link、Profinet、Ethernet/IP、EtherCAT | CC-Link、Profinet、Ethernet/IP、EtherCAT | |
Communication Board Optional Configuration | MiniPCI Express - real-time Ethernet PC Board | MiniPCI Express - real-time Ethernet PC Board | |
Software development kit | C#/C++/Python/ROS/ROS2 | C#/C++/Python/ROS/ROS2 | |
Physical | L*W*H | 245*180*44.5mm (No protrusions) | 245*180*44.5mm (No protrusions) |
Weight | 2.1kg (Weight without wire) | 2.5kg (Weight without wire) | |
Materials | galvanized sheet | galvanized sheet | |
Power supply | 30-60VDC | 30-60VDC | |
Ouput power | 48VDC / 42Amax | 48VDC / 42Amax |
