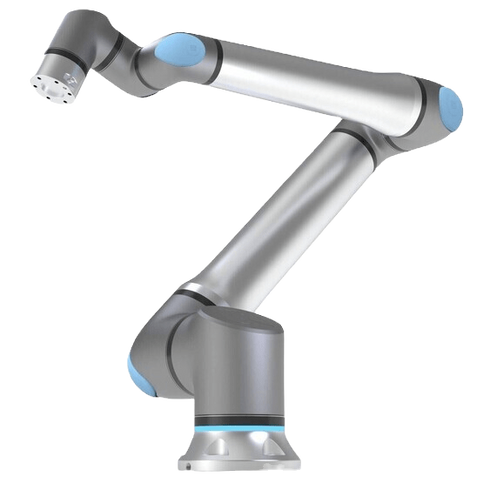

UR20e - UNIVERSAL ROBOTS COBOT

Payload

20KG

Reach

1750mm

Repeatability

±0.1mm

COBOTS - The UR20, Universal Robots' heavy-duty e-series cobot, offers an impressive 20 kg payload and an extended 1750 mm reach. Designed with a lightweight frame and compact footprint, this powerful robotic arm is ideal for automating tasks that involve heavy lifting across longer distances. The UR20 cobot excels in applications such as palletizing, material handling, packaging, and machine tending, delivering efficient performance even in space-constrained environments. Built for seamless human-machine collaboration, the UR20 robotic arm enhances productivity and safety, making it a top choice for businesses looking to streamline operations with advanced cobot technology.

Price:

$62,990.00

MTTR :
(Mean Time To Repair)

Contact for details

General Specifications
Part Number	PR-UR-001-0575

Weight	77.8 kg
Dimensions (L x W x H)	1000 x 1000 x 500 mm
Associated Fasteners	6 x HW-FN-019-0035

Spec Attribute	Spec Value
Performance
Reach	1750 mm
Repeatability	0.1 mm
Max Payload	20 kg
Robot Weight	64 kg
Degrees of Freedom	6
Max Average Power Consumption	750 W
Typical Average Power Consumption	300 W

Spec Attribute	Spec Value
Movement
J1 Movement Range	360 degrees
J2 Movement Range	360 degrees
J3 Movement Range	360 degrees
J4 Movement Range	360 degrees
J5 Movement Range	360 degrees
J6 Movement Range	360 degrees

Spec Attribute	Spec Value
Features
Robot Certified Standards	EN ISO 13849-1, PLd Category 3, EN ISO 10218-1 and UL1740
Robot IP Rating	65
Controller Certificatied Standards	ISO 14644-1 Class Cleanroom 6
Controller IP Rating	44
Warranty	30 Months
Available Add On Service	Field Evaluation Service for Canada (CSA SPE 1000) Add: PR-UR-800-0001

Spec Attribute	Spec Value
Controller
Controller Power Source	100-240VAC, 47-440Hz
Controller Weight	12 kg
Controller Dimensions	460 mm x 449 mm x 254 mm
Controller Digital ports	7 in, 7 out
Controller Analog ports	2 in, 2 out
Robot to controller cable length	6 m
